1161M/A- Combination Wrench- German Style

1161M/A-德式轻薄柄复合扳手 Combination Wrench

SKU 1161M Categories Wrench / L-Key Wrench, Wrench, Wrench- Individual Tags 两用复合式扳手, 扳手

1161M/A-德式轻薄柄复合扳手 Combination Wrench- (German Style)

Combination Wrench
German Style
Clés mixtes
Klucz płasko-oczkowy
Kombinationsschlüssel
Llaves combinada
مفاتيح ربط متعددة الاستخدامات.
ประแจรวม
德式輕薄柄複合扳手
DIN 3110- ISO 3318
ISO 7738
An-Lock Drive® (Superb Torque) has one goal in mind and that is to help you get the job done right. With features like heads that reach tight spaces, serviceable reversing levers, and grips that prevent slippage, An-Lock makes it easier for you to get the job done faster and right.

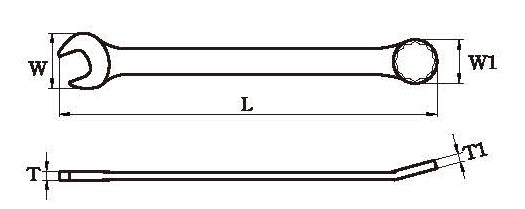

1161M (mm)	W (mm)	W1 (mm)	T (mm)	T1 (mm)	L (mm)	g	pcs
3.2	13.5	8.8	3.5	4	95	12	12
3.5	13.5	8.8	3.5	4	95	12	12
4	13.5	8.8	3.5	4	95	12	12
4.5	13.5	8.8	3.5	4	95	12	12
5	13.5	8.8	3.5	4	95	12	12
5.5	15.5	10	4	4.5	95	17	12
6	15.5	10	4	4.5	105	17	12
7	17	11.5	4	4.7	115	19.6	12
8	19.2	12.8	4.6	5.9	125	26	12
9	21.4	14.2	5.4	6.5	135	34	12
10	23.2	15.6	5.5	6.9	145	36	12
11	25.3	16.9	5.9	7.3	155	44	12
12	27.2	18.3	6.2	7.8	165	52	12
13	29.4	19.7	6.4	8.3	175	63	12
14	31.5	21.2	6.4	8.6	185	78	12
15	33.2	22.5	6.7	8.6	195	94	12
16	34.7	24	6.9	8.9	205	106	12
17	36.9	26.8	7.2	9.3	215	132	12
18	38.7	26.8	7.4	9.9	225	144	12
19	40.7	28	7.7	10.5	235	154	12
20	43	29.7	8	10.9	245	188	12
21	44.8	31.3	8.2	11.3	255	200	12
22	46.9	32.6	8.4	11.5	265	220	6
23	48.3	34.2	8.7	11.8	275	260	6
24	50.4	35.5	8.9	12	285	280	6
25	52	36.9	9.2	12.5	295	300	6
26	53.6	38.2	9.4	12.8	305	320	6
27	55.7	39.6	9.7	13.3	315	360	6
28	57.6	40.9	9.9	13.3	325	380	6
29	59.7	42.3	10	13.5	335	460	6
30	61.8	43.7	10.4	13.7	345	500	6
31	65.8	46.4	10.4	14.3	365	560	6
32	65.8	46.4	10.7	14.3	365	560	6
33	69.2	48.8	10.7	15	380	700	6
34	69.2	48.8	13.5	15	380	700	6
35	74	53	13.5	19.2	410	820	6
36	74	53	15	19.2	410	820	6
38	77	56	16	20.4	430	940	6
41	84	61	16	21.6	460	1120	6
42	84	61	16	21.6	460	1120	6
43	84	61	17	21.6	460	1120	6
44	92	66	17	23	500	1660	6
45	92	66	17	23	500	1660	6
46	92	66	17	23	500	1660	6
48	102	73	18	24.6	540	2080	6
50	102	73	18	24.6	540	2080	6
55	118	85	18	28	560	2800	6
60	124	94	20	31	600	3900	6
65	144	107	22	31	680	5800	6
70	144	107	22	31	680	5800	1
75	149	112	25.5	36	730	6600	1
80	149	112	25.5	36	730	6600	1
85	179	131	30	38	790	10000	1
90	179	131	30	38	790	10000	1
95	179	131	30	38	790	10000	1
100	187	145	32	43	860	12000	1
105	187	145	32	43	860	12000	1

1161A (inch)	W (mm)	W1 (mm)	T (mm)	T1 (mm)	L (mm)	g	pcs
1/4	15.5	10	4	4.7	105	17	12
5/16	19.2	12.8	4.5	5.9	125	26	12
3/8	21.4	14.2	5.4	6.9	145	36	12
7/16	23.2	15.6	5.5	7.3	155	44	12
1/2	27.2	18.3	6.2	8.3	175	63	12
9/16	29.4	19.7	6.4	8.6	185	78	12
19/32	31.5	21.2	6.4	8.6	195	94	12
5/8	33.2	22.5	6.7	8.9	205	106	12
11/16	34.7	24	6.9	9.3	215	132	12
3/4	40.7	28	7.4	10.5	235	154	12
25/32	43	29.7	7.7	10.9	245	188	12
13/16	44.8	31.3	8	11.3	255	200	12
7/8	46.9	32.6	8.2	11.5	265	220	12
15/16	50.4	35.5	8.7	12	285	280	6
1"	52	36.9	8.9	12.5	295	300	6
1-1/16	55.7	39.6	9.4	13.3	315	360	6
1-1/8	59.7	42.3	9.9	13.5	335	460	6
1-3/16	61.8	43.7	10	13.7	345	500	6
1-1/4	65.8	46.4	10.4	14.3	365	560	6
1-5/16	69.2	48.8	10.7	15	380	721	6
1-3/8	74	53	13.5	19.2	410	960	6
1-7/16	74	53	13.5	19.2	410	960	6
1-1/2	77	56	15	20.4	430	1160	6
1-5/8	84	61	16	21.6	460	1432	6
1-11/16	84	61	16	21.6	460	1432	6
1-3/4	92	66	17	23	500	1968	6
1-13/16	92	66	17	23	500	1968	6
1-7/8	102	73	18	24.6	540	2080	6
2"	102	73	18	24.6	540	2080	6
2-1/4	118	85	18	28	560	3800	6
2-5/16	124	94	20	31	600	3900	6
2-1/2	144	107	22	31	680	5800	6
2-5/8	144	107	22	31	680	5800	6
2-3/4	144	107	22	31	680	5800	6
3"	149	112	26	36	730	6600	1
3-1/8	149	112	26	36	730	6600	1
3-3/8	179	131	30	38	790	10000	1
3-9/16	179	131	30	38	790	10000	1
3-3/4	179	131	30	38	790	10000	1
3-15/16	187	145	32	43	860	12000	1
4"	187	145	32	43	860	12000	1
