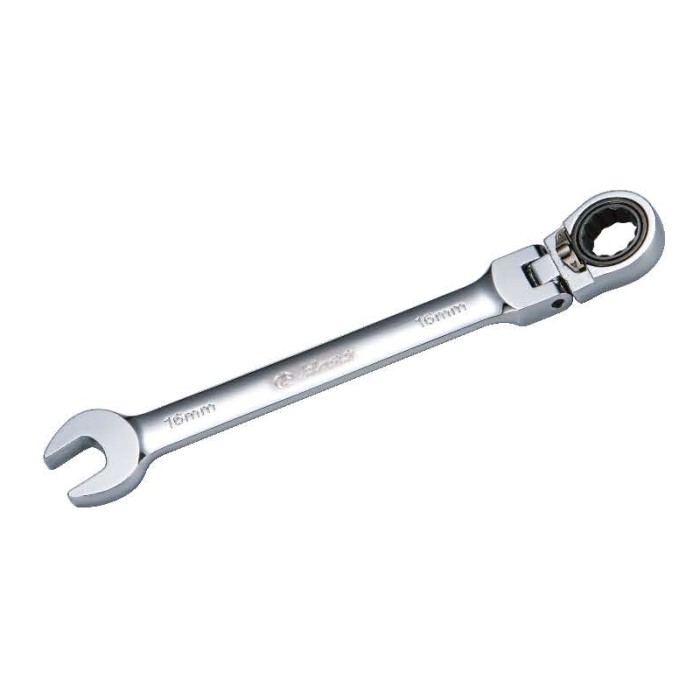

1166FM/FA-活头双向齿轮梅花式复合扳手 Open-End Gear Ring Wrench(Reversible)-Flex Joint
活头双向齿轮梅花式复合扳手 Open-End Gear Ring Wrench(Reversible)-Flex Joint
- Clés mixtes a cliquet réversible articule
- Dwukierunkowy klucz płasko-oczkowy z grzechotką z żywą głowicą
- Zwei-Wege-Ratschenkombinationsschlüssel mit angetriebenem Kopf
- Llaves combinada de carraca articuladas
- مفتاح مجموعة السقاطة ثنائية الاتجاه ذات الرأس المباشر
- ประแจแหวนข้างปากตายสองทาง
- 活頭雙向齒輪梅花式複合扳手
- An-Lock Drive® (Superb Torque) has one goal in mind and that is to help you get the job done right. With features like heads that reach tight spaces, serviceable reversing levers, and grips that prevent slippage, An-Lock makes it easier for you to get the job done faster and right.
What is a Gear Ring Wrench?
A Gear Ring Wrench/ ratcheting wrench combines the quick action of a socket wrench with the precision of a combination wrench. It is an indispensable tool that every gear head should have in their garage. For any gear head, the Gear Ring Wrench ratcheting wrench is one of the most important tools they need to use on a regular basis.
| 1166FM (mm) | W (mm) | W1 (mm) | T (mm) | T1 (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|---|
| 6 | 17.4 | 17 | 7.4 | 4.9 | 136 | 38 | 12 |
| 7 | 17.4 | 17 | 7.4 | 4.9 | 136 | 38 | 12 |
| 8 | 17.4 | 17 | 7.4 | 4.9 | 136 | 38 | 12 |
| 9 | 20.8 | 20.8 | 7.4 | 5.8 | 158 | 60 | 12 |
| 10 | 20.8 | 20.8 | 7.4 | 5.8 | 158 | 60 | 12 |
| 11 | 23.4 | 25.1 | 8.7 | 6.2 | 175 | 70 | 12 |
| 12 | 23.4 | 25.1 | 8.7 | 6.2 | 175 | 85 | 12 |
| 13 | 24.9 | 27.2 | 8.7 | 6.4 | 185 | 95 | 12 |
| 14 | 27.4 | 29.3 | 8.7 | 7 | 193 | 105 | 12 |
| 15 | 30.4 | 33 | 10.3 | 7.4 | 213 | 130 | 12 |
| 16 | 30.4 | 33 | 10.3 | 7.4 | 213 | 150 | 12 |
| 17 | 31.9 | 35.2 | 10.3 | 8.2 | 231 | 190 | 12 |
| 18 | 34.5 | 39.4 | 10.6 | 9 | 249 | 190 | 12 |
| 19 | 34.5 | 39.4 | 10.6 | 9 | 249 | 190 | 12 |
| 20 | 42.6 | 45.7 | 13 | 9.5 | 280 | 380 | 12 |
| 21 | 42.6 | 45.7 | 13 | 9.5 | 280 | 380 | 6 |
| 22 | 42.6 | 45.7 | 13 | 9.5 | 310 | 380 | 6 |
| 23 | 46.5 | 51.7 | 13.5 | 10 | 310 | 520 | 6 |
| 24 | 46.5 | 51.7 | 13.5 | 10 | 310 | 520 | 6 |
| 25 | 46.5 | 51.7 | 13.5 | 10 | 310 | 520 | 6 |
| 26 | 46.5 | 51.7 | 13.5 | 10 | 310 | 590 | 6 |
| 1166FA (inch) | W (mm) | W1 (mm) | T (mm) | T1 (mm) | L (mm) | g | pcs |
|---|---|---|---|---|---|---|---|
| (1/4) | 17.4 | 17 | 7.4 | 4.9 | 136 | 38 | 12 |
| (5/16) | 17.4 | 17 | 7.4 | 4.9 | 136 | 38 | 12 |
| (3/8) | 20.8 | 20.8 | 7.4 | 5.8 | 158 | 60 | 12 |
| (7/16) | 23.4 | 25.1 | 8.7 | 6.2 | 175 | 70 | 12 |
| (1/2) | 24.9 | 27.2 | 8.7 | 6.4 | 185 | 95 | 12 |
| (9/16) | 27.4 | 29.3 | 8.7 | 7 | 193 | 105 | 12 |
| (5/8) | 30.4 | 33 | 10.3 | 7.4 | 213 | 130 | 12 |
| (11/16) | 31.9 | 35.2 | 10.3 | 8.2 | 231 | 190 | 12 |
| (3/4) | 34.5 | 39.4 | 10.6 | 9 | 249 | 190 | 12 |
| (13/16) | 42.6 | 45.7 | 13 | 9.5 | 280 | 380 | 12 |
| (7/8) | 42.6 | 45.7 | 13 | 9.5 | 310 | 380 | 6 |
| (15/16) | 46.5 | 51.7 | 13.5 | 10 | 310 | 520 | 6 |
| (1") | 46.5 | 51.7 | 13.5 | 10 | 310 | 520 | 6 |
