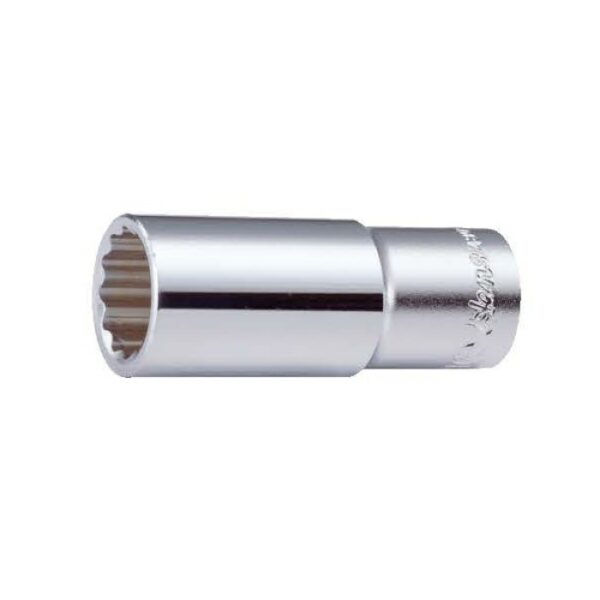

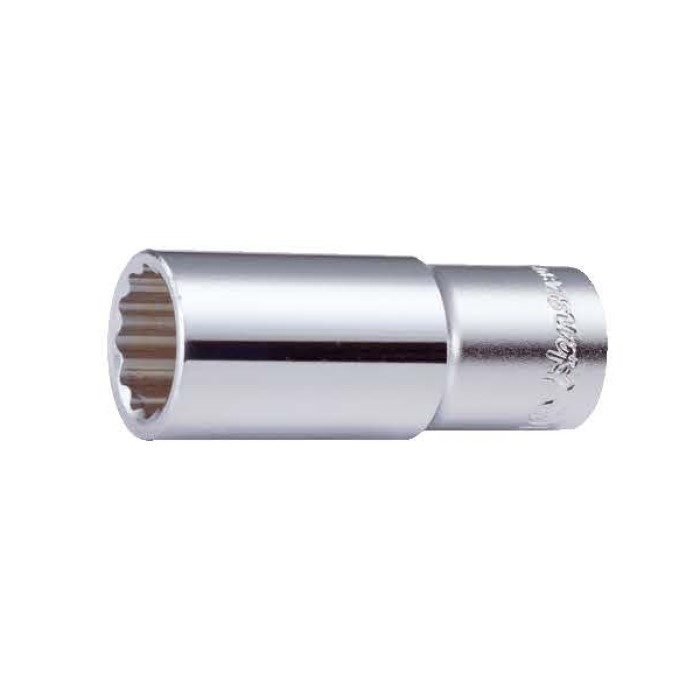

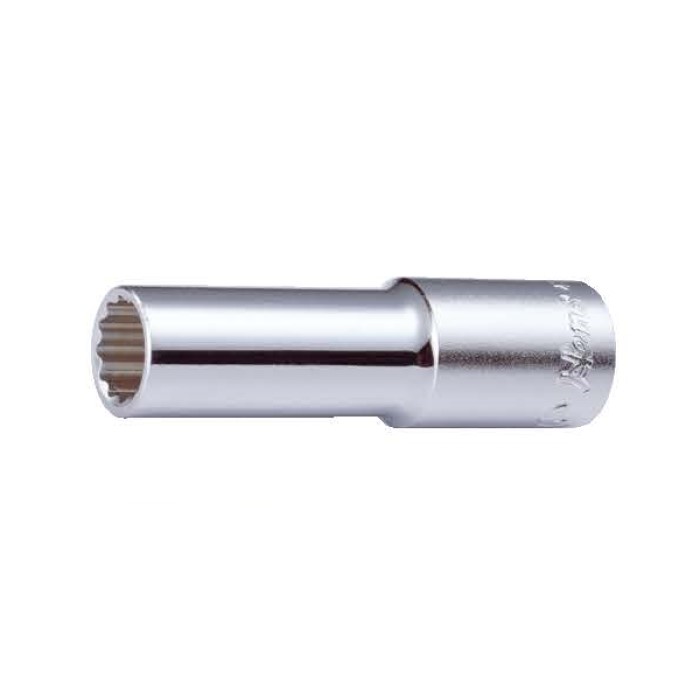

4302M/A-1/2" Drive 手动套筒 Hand Socket(Manual)- 12 角
4302M/A-1/2″ Drive手动套筒 Hand Socket(Manual)- 12角

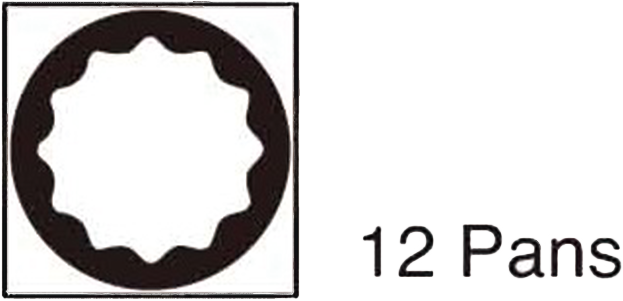

- HAND SOCKET (Manual) 4402M/A 12 Point
- vasos de surface drive
- douilles 6 pans surface drive
- unidade de superfície douilles 6 panelas
- douilles 6 pfannen oberflächenantrieb
- douilles 6 casseroles surface drive
- بكسات(مَقْابِس) – 12 ضلع.
- ไดรฟ์พื้นผิว douilles 6 กระทะ
- DIN 3120- ISO 1174
- DIN 3124- ISO 2725-1
- ASME B 107.5M, ASME B 107.1

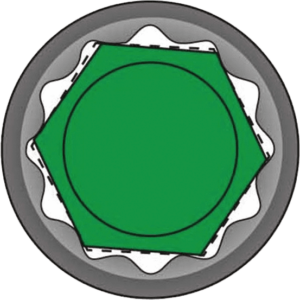

- 手動套筒 公制/英制 十二角

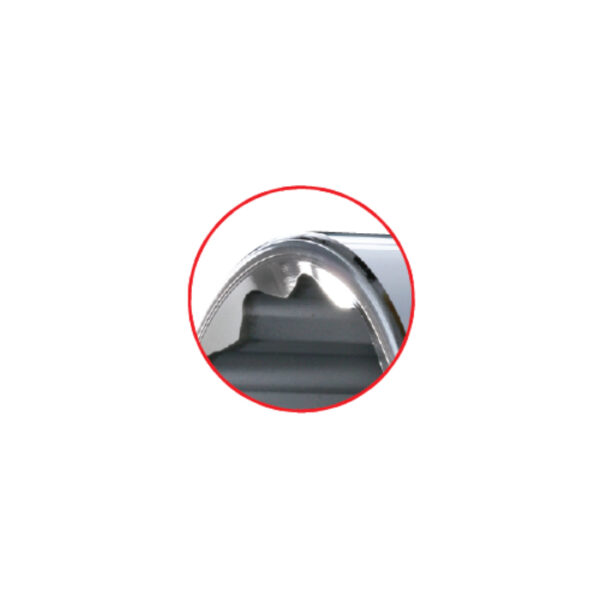

- An-Lock Drive® (Superb Torque)
- M- Stands for Metric/ A Stands for Imperial Size
Feature
- An-Lock Drive® (Superb Torque) is built to do one thing: help you get that job done right. has only one thing on its mind: helping you get the job done with ease, safety, and quality. With its many smart features such as reversing levers, stronger grips, and deep-reaching heads, it can get to those difficult places or those hard-to-reach nuts or bolts with incredible precision. Made from Chrome Vanadium-CrV 6140 alloy steel, it is one of the strongest bits in the industry.

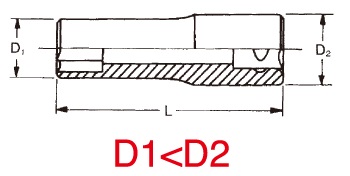

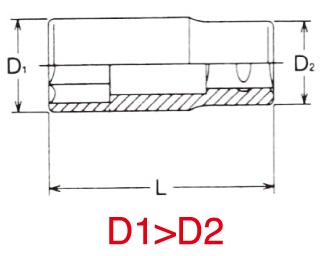

| 4302M (mm) | 4302A (inch) | D1 (mm) | D2 (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|
| 8 | 5/16 | 13.2 | 22 | 76 | 90 | 10 |
| 9 | 13.9 | 22 | 76 | 90 | 10 | |
| 3/8 | 14.7 | 22 | 76 | 85 | 10 | |
| 10 | 15.2 | 22 | 76 | 85 | 10 | |
| 11 | 7/16 | 16.3 | 22 | 76 | 85 | 10 |
| 12 | 17.7 | 22 | 76 | 95 | 10 | |
| 13 | 1/2 | 18.8 | 22 | 76 | 100 | 10 |
| 14 | 9/16 | 20.4 | 22 | 76 | 100 | 10 |
| 15 | 19/32 | 21.0 | 22 | 76 | 110 | 10 |
| 16 | 5/8 | 24.0 | 22 | 76 | 125 | 10 |
| 17 | 21/32 | 24.0 | 23 | 76 | 125 | 10 |
| 11/16 | 24.0 | 23 | 76 | 120 | 10 | |
| 18 | 25.0 | 24 | 76 | 150 | 10 | |
| 19 | 3/4 | 27.0 | 25.8 | 76 | 160 | 10 |
| 20 | 25/32 | 28.0 | 26 | 76 | 160 | 10 |
| 21 | 13/16 | 30.0 | 27 | 76 | 190 | 10 |
| 22 | 7/8 | 30.0 | 27 | 76 | 190 | 10 |
| 23 | 32.0 | 30 | 76 | 230 | 10 | |
| 24 | 15/16 | 33.0 | 30 | 76 | 245 | 10 |
| 25 | 34.0 | 31 | 76 | 245 | 5 | |
| 26 | 1" | 36.0 | 32 | 76 | 280 | 5 |
| 27 | 1-1/16 | 37.0 | 34 | 76 | 280 | 5 |
| 28 | 38.0 | 34 | 76 | 280 | 5 | |
| 29 | 1-1/8 | 40.0 | 35 | 76 | 310 | 5 |
| 30 | 1-3/16 | 40.0 | 36 | 76 | 360 | 5 |
| 32 | 1-1/4 | 43.0 | 38 | 76 | 360 | 5 |
RELATED PRODUCTS
Related products
-
-

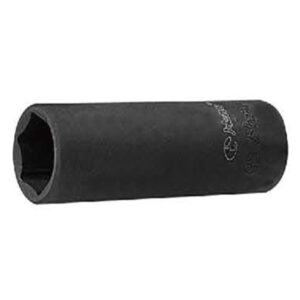

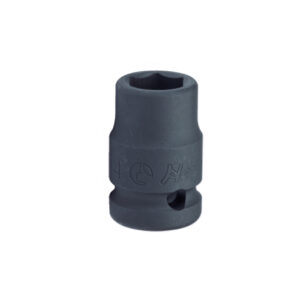

Socket / Ratchet / Combo (Socket Wrench Set)84016-2/-3M/A六角头 风动冲击套筒 Impact Hexagon Socket
