过滤润滑空气滤净系统 Air Filter Regulator Lubricator control Unit

过滤润滑空气滤净系统 Air Filter Regulator Lubricator control Unit

  • Filter Regulator Lubricator Controller Unit
  • Filtre regulateur lubrificateur
  • Filtr Regulator Smarownica Jednostka Sterująca Powietrzem
  • Filter Regler Öler Luftsteuereinheit
  • Filtro regulador lubricador
  • مرشح منظم التشحيم وحدة التحكم في الهواء
  • ชุดควบคุมอากาศกรองน้ำมันหล่อลื่น
  • 過濾潤滑空氣濾淨系統

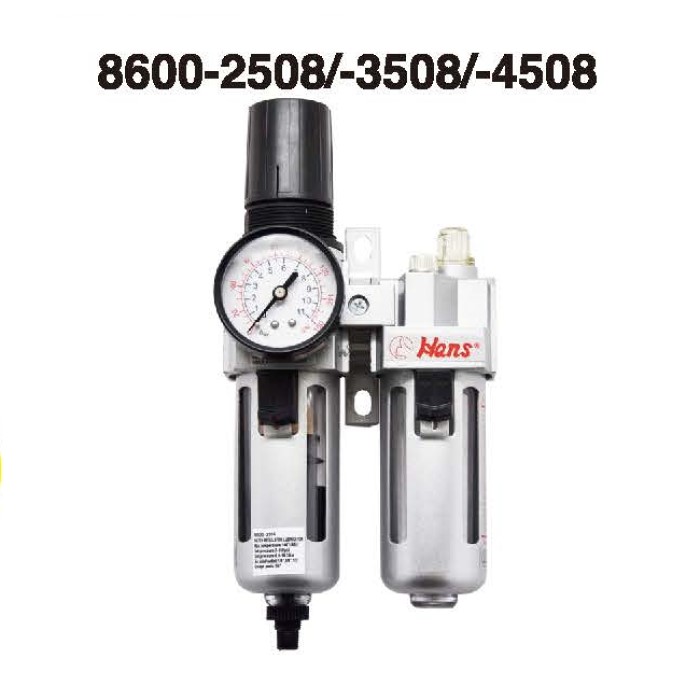

  • 8600-2508/ -3508/ -4508

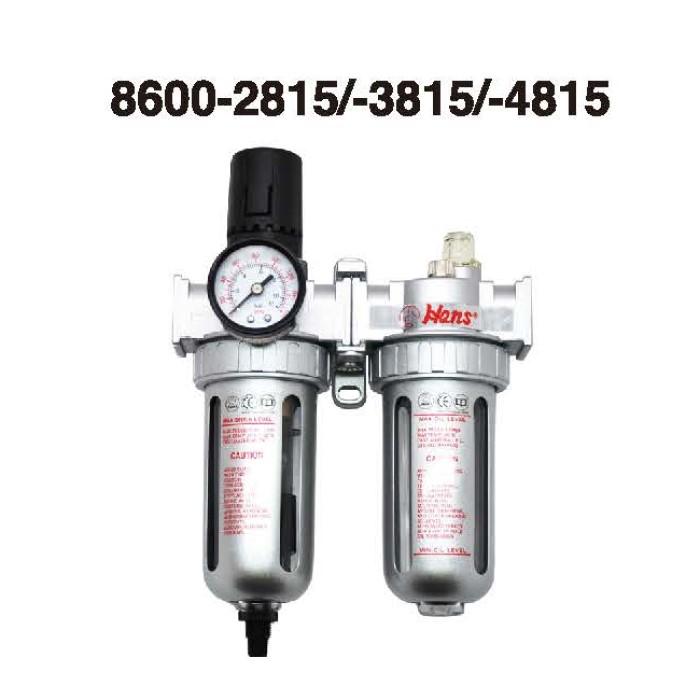

  • 8600-2815/ -3815/ -4815

Features :

  1. Filter eiement : 5μ
  2. Temperature Range : 5~60℃
  3. Automatic Drain Valve
  4. Solid Steel Bowl Containers Offer Better Protection.
  5. Safe Lockable Buckles For Installation.
  6. Easy Installarion and Disassembly.
ITEM NO.PORT SIZE
PT/NPT
MAX INPUT PRESSUREMAX OUTPUT PRESSUREMAX FLOW
L/min
DRAIN CAPACITY
L/mm
OIL CAPACITY
L/mm

g
8600-25081/4"175 PSI
1.2 MPa
0~145 PSI
0~1 MPa
220055801516
8600-35083/8"175 PSI
1.2 MPa
0~145 PSI
0~1 MPa
300055801466
8600-45081/2"175 PSI
1.2 MPa
0~145 PSI
0~1 MPa
310055801433
8600-28151/4"175 PSI
1.2 MPa
0~145 PSI
0~1 MPa
1750801501008
8600-38153/8"175 PSI
1.2 MPa
0~145 PSI
0~1 MPa
2500801501025
8600-48151/2"175 PSI
1.2 MPa
0~145 PSI
0~1 MPa
3000801501042
